High Fidelity – Mission Ready

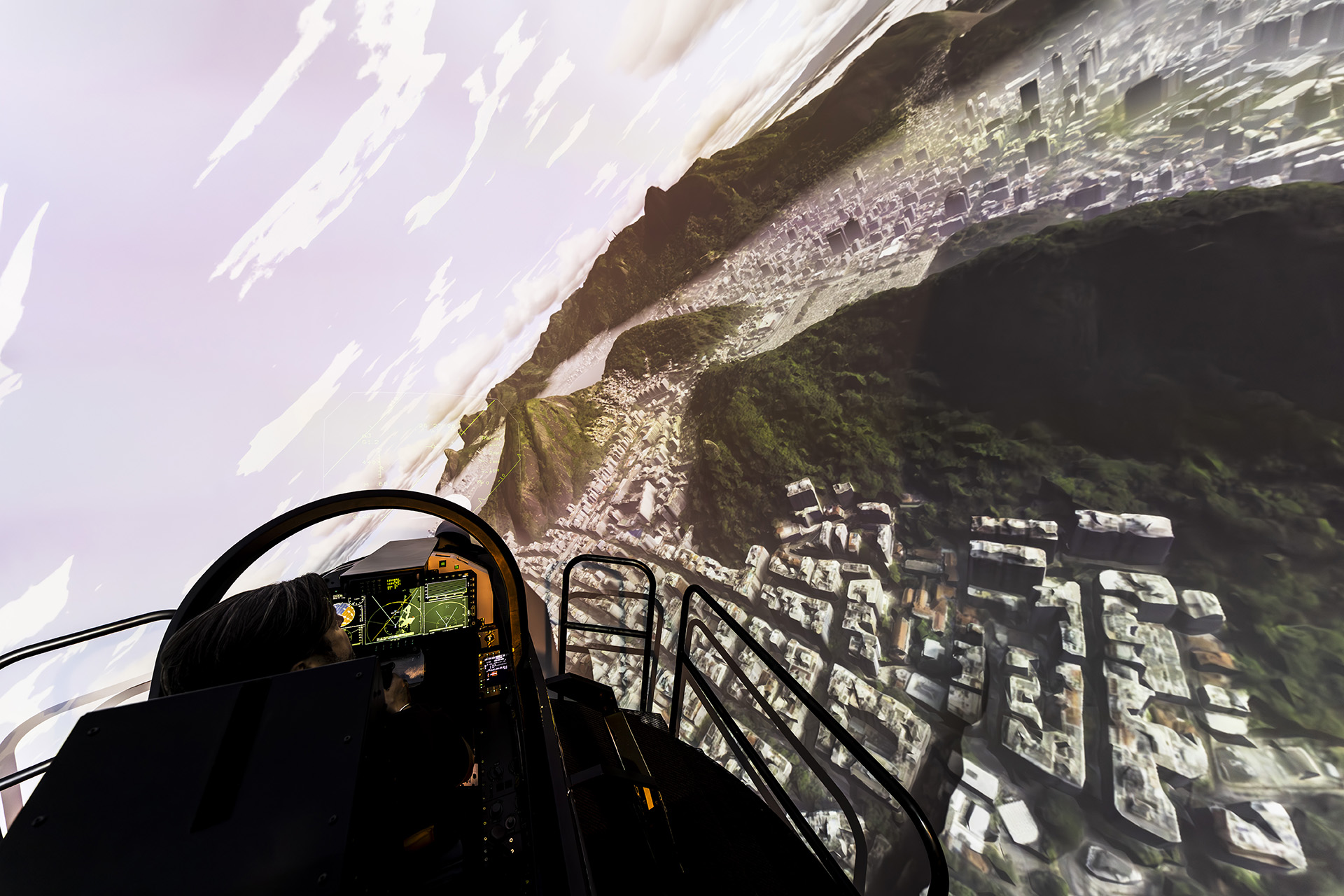

Atlas™ systems are state-of-the-art, high-fidelity fixed-wing simulator dome displays engineered for fast-jet and turbo-prop aircraft simulators. These displays deliver superior image contrast and uniformity with a compact footprint and fewer channels compared to rear-projection systems. Featuring low smear and expansive fields of view up to 270 degrees, they are optimized for the high-speed demands of advanced flight training. Certified for FAA Level 6 flight training devices, Atlas is the definitive choice for mission-critical training environments.
Key features
Immersive Visual Experience
- Up to 270° Field of View:
Optimized horizontal and overhead field of view for maximum immersion - Flexible Field of View:
Optional dome cap extends vertical FOV from the apex, behind, and beyond the pilot - Low Smear and Parallax:
Enhanced realism for high-speed flight simulation - Superior Image Quality:
Exceptional contrast and uniformity compared to rear-projection systems - Up to Eye-Limiting Resolution:
Pixel-precision for enhanced training outcomes
Efficient Design and Versatility
- Compact Footprint:
Space-efficient design with fewer projection channels compared to rear-projection systems - Flexible Screen Sizes:
Available in radial sizes from 2 m to 3.5 m (6.5 to 11.5 ft) - Adaptable Configuration:
Suitable for various aircraft types and training needs - Night Vision Capability:
High-resolution projectors with NVG support
Atlas Data Sheet
Atlas™ Previous Deliveries

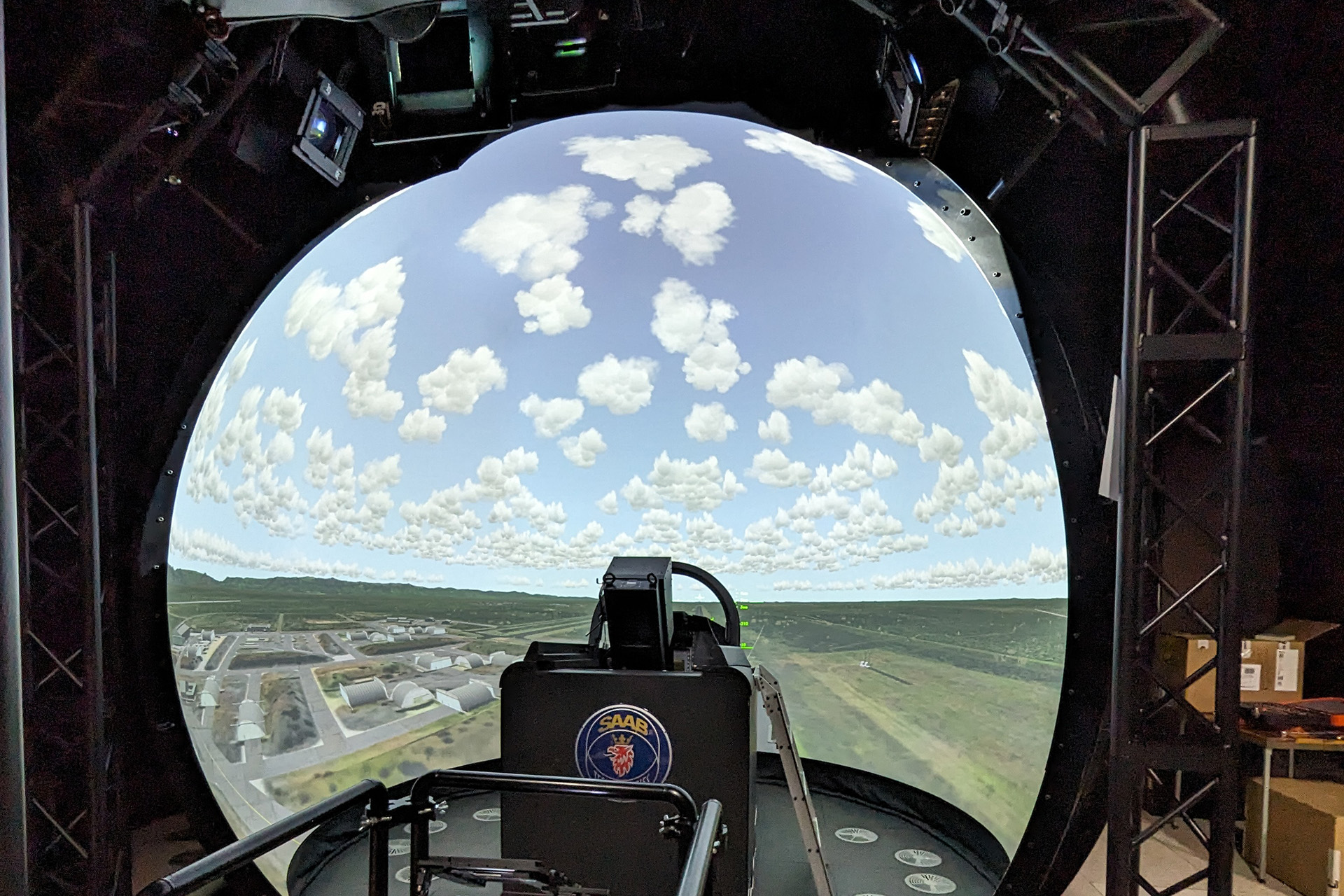

Atlas systems have been successfully delivered for various training programs, including the UK Military Flying Training System (UKMFTS) Basic Flying Training (BFT) with the T-6C, and over 10 systems for the Saab JAS 39 Gripen.
Available Turn-key Systems
 System |
Atlas 270 | Atlas 270A | Atlas 270B | Atlas 360 | Atlas 360A |
|---|---|---|---|---|---|
 Concept |
High-Fidelity Dome | Wide FOV FAA Level 7 | High Resolution w/Enclosure | High-Fidelity Full Dome | High Resolution Full Dome |
 DimensionsL x W x H |
5.3x4x3.5 m | 17x13x11.5 ft | 6x6x5 m | 19x19x16 ft | 7x6x5 m | 23x19.5x16 ft | 6x4.7x4.6 m | 19.6x23x15 ft | 6x4.7x4.6 m | 19.6x23x15 ft |
 RadiusM | FT |
2.0 m | 6.5 ft | 2.8 m | 9 ft | 2.8 m | 9 ft | 2.35 m | 7.7 ft | 3.5 m | 11.5 ft |
 HFOV |
270° | 270° | 270° | 320° | 330° |
 +VFOV |
+120° | +40° | +90° | +125° | +155° |
 -VFOV |
-35° | -30° | -30° | -37° | -40° |
 Resolution |
4.9 arcmin/OLP | 5 arcmin/OLP | 4 arcmin/OLP 3.3 arcmin/OLP AOA |
4 arcmin/OLP | 1.8 or 4 arcmin/OLP |
 Brightness |
11 Ft L | 20 Ft L | 23 Ft L | 9 Ft L | 14 Ft L |
 Contrast |
7:1 | 5:1 | 10:1 | 9:1 | 9:1 |
Resources
Atlas Fixed-wing Simulator Dome Displays - in AR
- Scan the QR-code
- Place Atlas in your room; ensure ample space
- See Atlas Simulation Display System in full scale
Display Systems Showroom
- See some of our Fast Jet Simulation Display Systems
- Click the button and join the 3DP showroom
Seamless - Focused - Performance
Seamless Performance
Automatic image alignment and calibration with camera-free screen sensor technology, ensure seamless imagery while maintaining maximum security
Maintain full image contrast and dynamic range throughout the day with automated dynamic electronics-optical hybrid blending
Flexible Integration
Independence of image generator and projector for easy integration and future-proofing
Supports Night Vision Goggles (NVGs) and light closeout options
Centralized system control through a unified interface
Proven Expertise
Serving global customers since 1997
Hundreds of successful deliveries worldwide
Continuous innovation in visual display technology
